Introduction
High-Capacity Solution for Continuous Matcha Grinding and Commercial Production.
Our Advantage
Dual independent grinding heads in single cabinet footprint, 60–80 g/h total output
Each head equipped with natural black granite stones + individual frequency inverter control
Consistent 5–10 μm ultra-fine particle size across both grinding heads

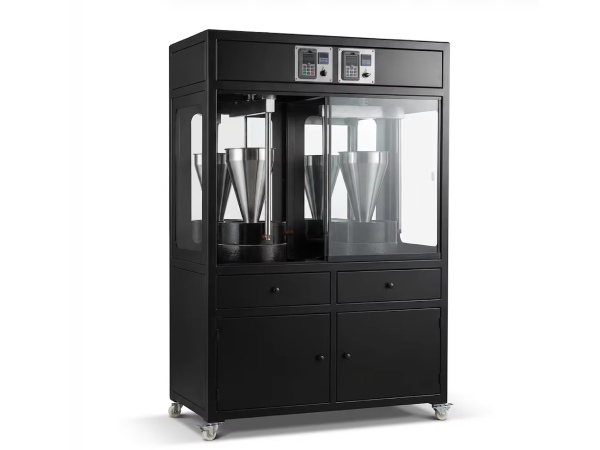

Black industrial cabinet with sliding glass doors, fully enclosed dust protection
Two integrated large storage drawers for tools, accessories and raw materials
Low-temperature grinding below 35°C, preserves chlorophyll, amino acids and tea aroma
Industrial-grade construction, supports 24/7 continuous factory operation
Uniform output quality, ideal for large-batch standardized production
CE certified, export-standard wooden case packaging for global shipping
Specification
| Item | Parameter |
| Model | JZ-MY06 Cabinet Double |
| Overall Dimensions | 1200 × 600 × 1800 mm |
| Net Weight | 240 kg (main body) + granite grinding stones |
| Total Motor Power | 550W × 2 (1.1 kW total) |
| Voltage | 110V/220V, 50/60Hz (Customizable) |
| Grinding Speed | 30–40 rpm per head (independently adjustable) |
| Total Output Capacity | 60–80 g/h (dual grinding heads) |
| Powder Fineness | 5–10 μm (adjustable per head) |
| Grinding Stones | Natural black granite, Ø34 cm, 4 pieces total (2 per head) |
| Cabinet Structure | Black industrial cabinet + sliding glass panels |
| Storage | 2 integrated large storage drawers |
| Max Daily Operation | 24 hours continuous industrial use |
| Recommended Monthly Output | 100–150 kg matcha powder |
| Certification | CE Certified |
| HS Code | 68041000 |
Application
Commercial matcha processing plants
Organic green tea manufacturers
Tencha deep processing factories
Food ingredient factories
Tea raw material suppliers
Factory Layout Recommendation
Factory Layout Recommendation for 100–150 kg/month
4–6 sets of JZ-MY06 Cabinet Double Model
Air-conditioned room (constant 22–25°C)
1 operator can manage 10 machines simultaneously
Optimized space utilization with doubled output per floor area
About JUNZHENG
Henan Junzheng Import and Export Co., Ltd. is a leading provider of high-end industrial food machinery, specializing in traditional stone milling technology replicated with modern precision engineering. Our matcha stone mills are trusted by ceremonial-grade matcha producers worldwide, from boutique tea houses to large-scale industrial plants.
Warranty & After-Sales
12 months full replacement warranty
Lifetime technical support & resurfacing guidance
Video-call installation and SOP training included
Fast shipping worldwide
Packaging & Logistics
- IPPC fumigation-free plywood cases for international shipping
- Steel strap reinforced packaging
- Package volume: 0.8–1.2 CBM per unit
- HS Code: 68041000
- CE Certified
